CS-04P Crimp Cross Section Monitor
CS-04P Cut and Grinding Unit

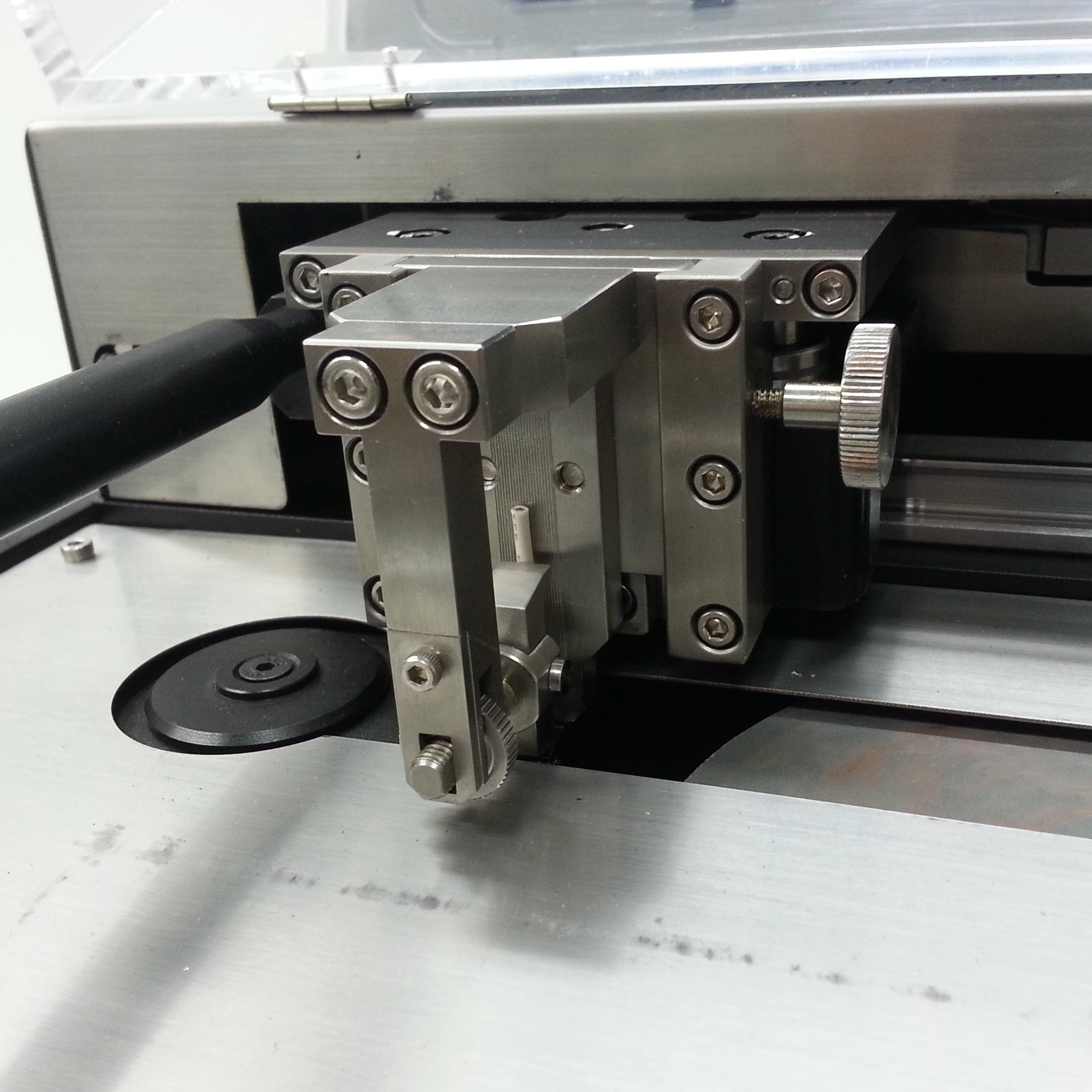

CS-04P cut Terminal by rotated Grindstone and grind by sandpaper after putting Terminal on Clampping Jig directly without hardening by resin
CS-S-077S Software
CS-0-077 MicroScope
It is including 3M pixel USB Camera and X, Y position adjust stage.
CS-S-077S Software

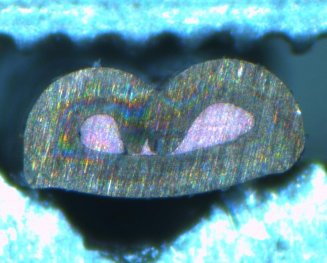

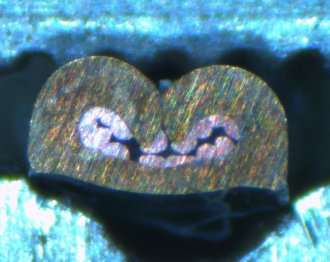

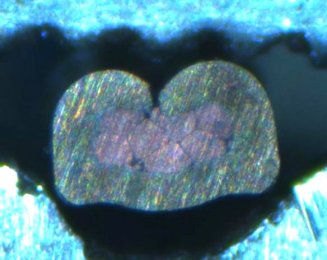

After cutting terminal by CS-04P, It can check the Crimp cross section, and can measure Crimp Height, Crimp Width and Crimp Area after Crimpping Terminal by CS-S-077S.
