C551SZ Automatic terminal crimping machine
High performance crimp machine

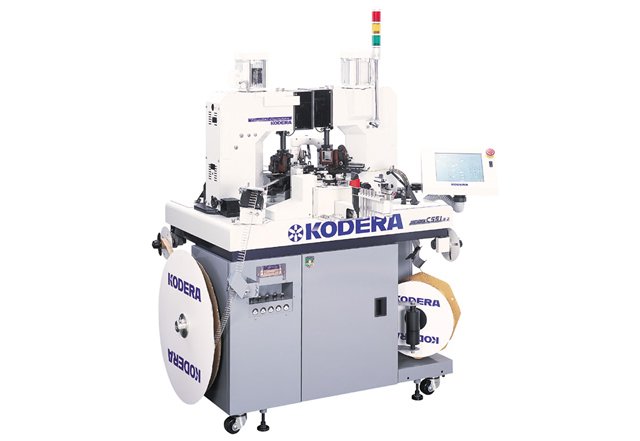

C551SZ process both end crimping automatically with high quality and high speed. It is a new model from C451, C451A.
CFM Crimp force monitor
Crimp force monitor check the pressure of crimping terminal and display a curve on the monitor at each crimp. It stop the machine when a curve pattern changes from good sample. It is necessary function for keeping quality for wire crimping.
CHA Crimp height auto adjust unit
C551SZ is equipped with CHA that can memory the ram height and reproduce ram height by motor with encoder. It can shorten adjusting time of setting crimp height.
CFM Crimp force monitor ※test data sample
No crimping terminal
When crimper crimp without crimping terminal, the crimp pressure does not break out. Then the curve is displayed flat.
Cutting conductor
If the machine cut wire conductor more than 10% when stripping a wire insulation by blade, the crimping pressure is lower. Then the curve is displayed lower at the top.
Crimping insulation
If crimper crimp with wire insulation together when the wire position is deep to crimp terminal, the crimping pressure is up. Then the curve is displayed up from a beginning to the top.
Movie
Specifications
Front end : Cut, Strip, Terminal Crimping
Rear end : Cut, Strip, Terminal Crimping
Front : 0.1mm ～30mm / Rear : 0.1 ～ 20mm
max 99,999mm
±( 0.2 ＋ 0.002 × L )mm
L ≧ 25mm
AWG #12(3.5sq) ～ #32(0.03sq) ※Depend on the wire type.
AVSS, AVS, AV, CAVUS, KV, KIV, UL, Teflon, etc
2.5ton
30mm or 40mm
Open barrel side feed/end feed type ※max 27mm
AC200 or 220 or 240V 50/60Hz
rated : 340W / max : 1,600W
25Nl/min 0.5MPa
CFM Crimp force monitor, CHA Crimp height auto adjust unit
1,090 x 780 x 1,550mm
450kg
