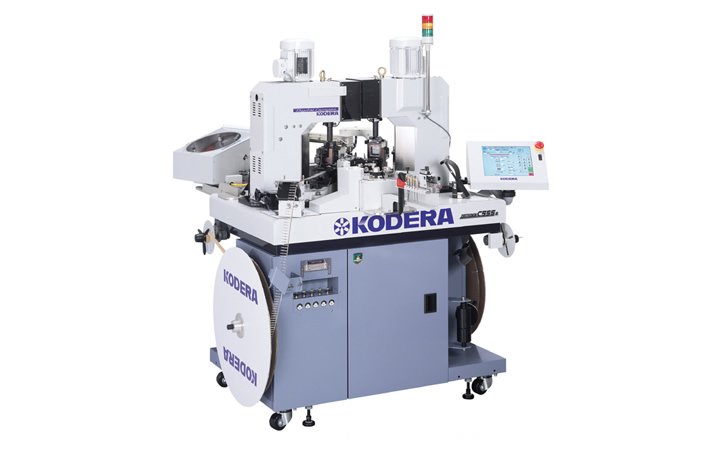

C555SZ Automatic wire seal and crimp machine
Stable wire seal processing
C555SZ process both end wire crimp and front end inserting wire seal that a lot of kinds of type automatically.
DF-01 Wire seal processing unit
C555SZ is equipped with DF-01 that is a wire seal processing unit of the new development. It receive a high evaluation from users.
Equipped CHA and CFM
C555SZ installed DF-01 wire seal unit, based on C551SZ. so it is also equipped with CHA Crimp height auto adjust unit that can memory and reproduce the ram height, CFM Crimp force monitor that check the pressure of crimping terminal.
CFM Crimp force monitor ※test data sample
No crimping terminal
When crimper crimp without crimping terminal, the crimp pressure does not break out. Then the curve is displayed flat.
Cutting conductor
If the machine cut wire conductor more than 10% when stripping a wire insulation by blade, the crimping pressure is lower. Then the curve is displayed lower at the top.
Crimping insulation
If crimper crimp with wire insulation together when the wire position is deep to crimp terminal, the crimping pressure is up. Then the curve is displayed up from a beginning to the top.
CFM Crimp force monitor ※test data sample

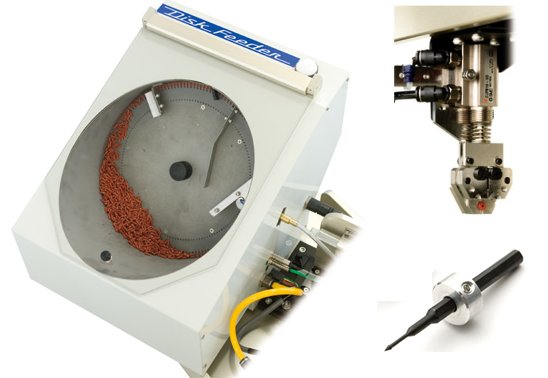

Wire seal supply Disc feeder
Kodera original disc feeder perform stable wire seal supply from small wire seal like a 025 type to big wire seal like a 090 type than straight feeder as other wire seal machine.
Wire seal insert Carry pin & chuck
After supply a wire seal by disc feeder, Carry pin pick a wire seal and Carry chuck that was made to from the shape of wire seal grip a wire seal from Carry pin certainly, and then Carry chuck insert a wire seal to a cutting wire.
Specifications
Front end : Cut, Strip, Terminal Crimping, Wire seal insert
Rear end : Cut, Strip, Terminal Crimping
Front : 0.1mm ～30mm / Rear : 0.1 ～ 20mm
max 99,999mm
±( 0.2 ＋ 0.002 × L )mm
L ≧ 25mm
AWG #12(3.5sq) ～ #32(0.03sq) ※Depend on the wire type.
AVSS, AVS, AV, CAVUS, KV, KIV, UL, Teflon, etc
2.5ton
30mm or 40mm
Open barrel side feed/end feed type ※max 27mm
AC200 or 220 or 240V 50/60Hz
rated : 400W / max : 1,750W
35Nl/min 0.5MPa
CFM Crimp force monitor, CHA Crimp height auto adjust unit,
DF-01 Wire seal insertion unit
1,090 x 780 x 1,550mm
480kg
