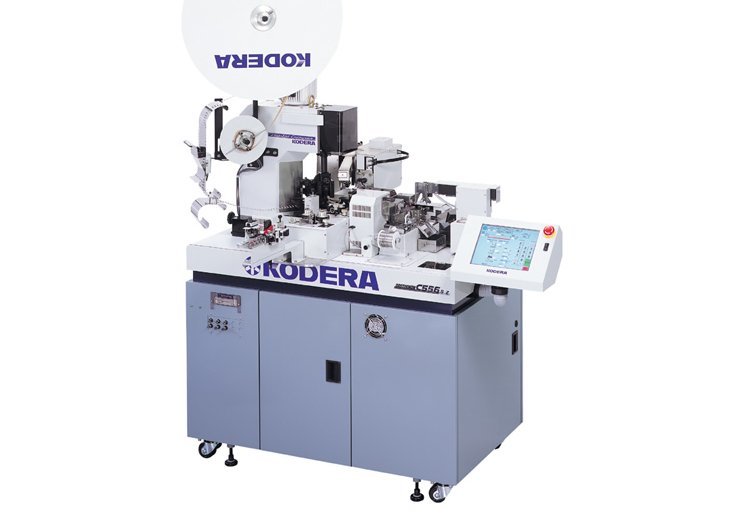

C556SZ Crimp & wire seal & solder machine
High performance wire processor
C556SZ process front end crimping and wire seal insert and rear end twisting and soldering automatically.
Mixed C555SZ and C550SZTS
C556SZ is the mixed machine, front end is based on C555SZ that installed DF-01 wire seal insert unit and rear end is based on C550SZTS that installed CASY-645 wire twist unit and SUA wire solder unit. so it realize a high performance.
Equipped CHA and CFM
It is equipped with CHA Crimp height auto adjust unit and CFM Crimp force monitor at front end crimper same as other C55X series. so it realize high quality and usefulness.
CFM Crimp force monitor ※test data sample
No crimping terminal
When crimper crimp without crimping terminal, the crimp pressure does not break out. Then the curve is displayed flat.
Cutting conductor
If the machine cut wire conductor more than 10% when stripping a wire insulation by blade, the crimping pressure is lower. Then the curve is displayed lower at the top.
Crimping insulation
If crimper crimp with wire insulation together when the wire position is deep to crimp terminal, the crimping pressure is up. Then the curve is displayed up from a beginning to the top.

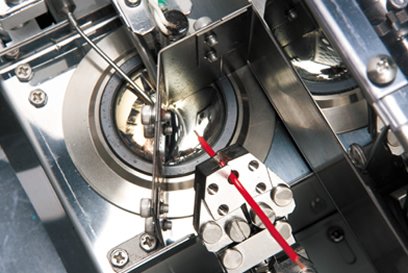

SUA Wire soldering unit
CS-055 Rotating solder pot
Kodera original solder bath is always rotate when solder temperature is up to target degree, and there is a filter plate for cleaning the solder surface in the soldering pot. so It can always keep clean the solder surface.
Specifications

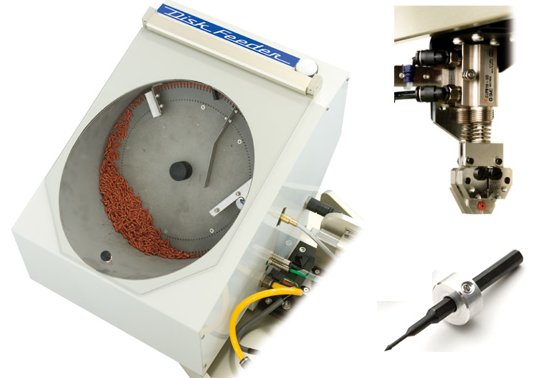

Wire seal supply Disc feeder
Kodera original disc feeder perform stable wire seal supply from small wire seal like a 025 type to big wire seal like a 090 type than straight feeder as other wire seal machine.
Wire seal insert Carry pin & chuck
After supply a wire seal by disc feeder, Carry pin pick a wire seal and Carry chuck that was made to from the shape of wire seal grip a wire seal from Carry pin certainly, and then Carry chuck insert a wire seal to a cutting wire.
Specifications
Front end : Cut, Strip, Terminal Crimping, Wire seal insert
Rear end : Cut, Strip, Twisting, Soldering
Front : 0.1mm ～30mm / Rear : 0.1 ～ 30mm
max 99,999mm
±( 0.2 ＋ 0.002 × L )mm
L ≧ 25mm
AWG #12(3.5sq) ～ #32(0.03sq) ※Depend on the wire type.
AVSS, AVS, AV, CAVUS, KV, KIV, UL, Teflon, etc
2.5ton
30mm or 40mm
Open barrel side feed/end feed type ※max 27mm
AC200 or 220 or 240V 50/60Hz
rated : 560W / max : 1,800W
55Nl/min 0.5MPa
CFM Crimp force monitor, CHA Crimp height auto adjust unit,
DF-01 Wire seal insertion unit, CASY-645 Wire twist unit,
SUA Wire soldering unit
1,120 x 765 x 1,550mm
385kg
