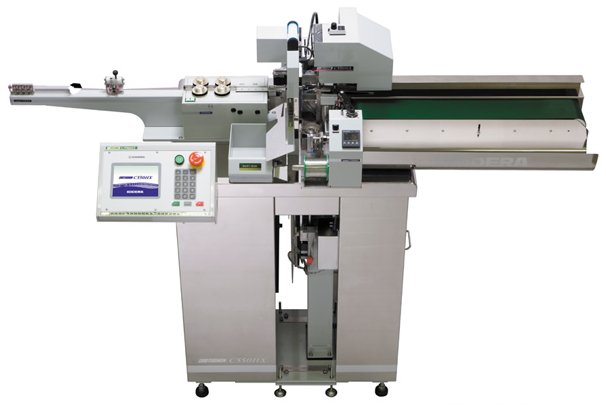

C550HX Auto crimp and soldering machine
High speed wire solder machine
C550HX is the fastest automatic wire crimp and twisting and soldering machine. C550HX implement beautiful soldering and high productivity with equiped new type twist unit flux and solder unit, and also implement stable crimping by Crimp force monitor and HX terminal applicator with the result in C551HX.
| Total Length | Processing Capacity | |||
| 30mm | 8,450 pcs/hour | |||
| 50mm | 8,200 pcs/hour | |||
| 70mm | 8,000 pcs/hour | |||
| 150mm | 6,200 pcs/hour | |||
| 500mm | 5,250 pcs/hour | |||
HX Terminal Applicator
New type Terminal Applicator
HX Applicator is compact and light design than normal crimping Applicator. It have an IC Tag built in a applicator, and it transfer the Crimping ID data to a machine automatically when operator put applicator in a Crimper, then almost all setting up is finished.
| Crimper ID | 1.Terminal information 2.Wire information 3.core diameter 4.Crimp height 5.Crimp force 6.Strip length 7.Crimp position 8.Shot number (max 8 digits) 9.Trip shot number (max 7 digits) 10.Administrator 11.Lot No. | |||
| Anvil ID | 1.Terminal information 2.Shot number (max 8 digits) 3.Trip shot number (max 7 digits) 4.Administrator 5.Lot No. | |||
HX Terminal Applicator

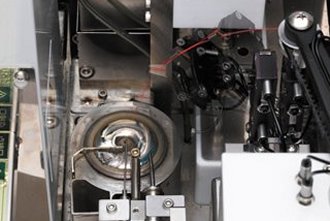

Rotating soldering pot
Kodera original solder bath is always rotate when solder temperature is up to target degree, and there is a filter plate for cleaning the solder surface in the soldering pot, so It can always keep clean the solder surface, and it suppress the vibration by separate structure.
Circulation fluxing unit
It is very important for wire soldering to put flux to a wire certainly, so Kodera adopted the new type fluxing unit on C550HX. Circulation fluxing unit always circulate flux and drop flux like a waterfall at point of putting flux to wire.
Movie
Specifications
Front end : Cut, Strip, Terminal Crimping
Rear end : Cut, Strip, Twisting, Soldering
Front : 0.1mm ～34.5mm / Rear : 0.1 ～ 5.5mm
max 99,999mm
±( 0.1 ＋ 0.0005 × L )mm
L ≧ 19mm
AWG #18 (0.75sq) ～ #32 (0.03sq) ※Depend on the wire type.
AVSS, AVS, AV, CAVUS, KV, KIV, UL, Teflon, etc
1.2ton
Open barrel side feed type only ※max 27mm
AC100 ～ 240V 50/60Hz
rated : 330W (100V) / max : 850W (100V)
18Nl/min 0.5MPa
CFM Crimp force monitor, ID tag, Data send/receive device,
Wire Twisting Unit, Wire Soldering Unit
CPD-06 Bobbin Wire Supply Unit
700 x 550 x 1,210mm
190kg
