C551HXA Automatic wire crimping machine
High speed crimping machine

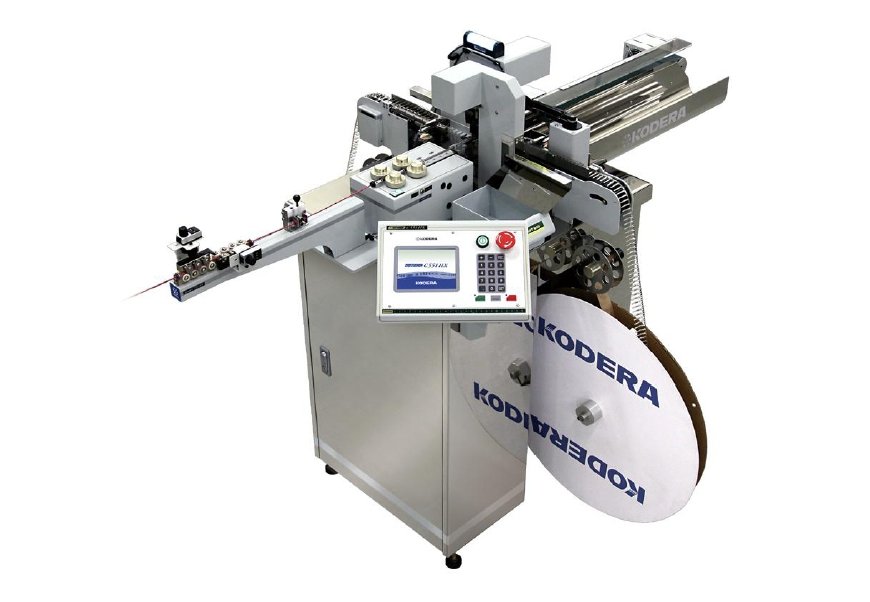

C551HXA is the fastest fully automatic wire crimping machine. The speed is more than double amount of production than other automatic crimping machine, and also the quality is keeping good with Crimp Force Monitor and HX applicator especially for small wire and crimping terminal.
| Total Length | Processing Capacity | |||
| 75mm | 10,600 pcs/hour | |||
| 100mm | 10,400 pcs/hour | |||
| 300mm | 8,950 pcs/hour | |||
| 500mm | 7,850 pcs/hour | |||
| 1,000mm | 5,350 pcs/hour | |||
HX Crimping Applicator
New type Terminal Applicator
HX Applicator is compact and light design than normal crimping Applicator. It have an IC Tag built in a applicator, and it transfer the Crimping ID data to a machine automatically when operator put applicator in a Crimper, then almost all setting up is finished.
| Crimper ID | 1.Terminal information 2.Wire information 3.core diameter 4.Crimp height 5.Crimp force 6.Strip length 7.Crimp position 8.Shot number (max 8 digits) 9.Trip shot number (max 7 digits) 10.Administrator 11.Lot No. | |||
| Anvil ID | 1.Terminal information 2.Shot number (max 8 digits) 3.Trip shot number (max 7 digits) 4.Administrator 5.Lot No. | |||
Movie
Specifications
Front end : Cut, Strip, Terminal Crimping
Rear end : Cut, Strip, Terminal Crimping
Front / Rear : 0.1 ～ 7mm
max 99,999mm
±( 0.2 ＋ 0.002 × L )mm
L ≧ 62mm
AWG #18(0.75sq) ～ #32(0.03sq) ※Depend on the wire type.
AVSS, AVS, AV, CAVUS, KV, KIV, UL, Teflon, etc
1.2ton
Open barrel side feed type only ※max 27mm
AC100 ～ 240V 50/60Hz
rated : 120W / max : 760W
18Nl/min 0.5MPa
CFM Crimp force monitor, ID tag, Data send/receive device
CPD-06 Bobbin Wire Supply Unit
620 x 550 x 1,210mm
193kg
