C370A Wire processing machine
High-Speed
C370A is a new model from C350 and C370, that the fastest machine in the Casting series. Maximum processing capacity is around 10,000 pcs/h. ※L=50mm, both ends strip:3mm, speed:9, thin mode
Optional equipment available
C370A can attach the optional wire twisting machine CASY-637A. when using C370A with CASY-637A, it can cut, strip and twist at the same time with good quality.
C370A Wire processing machine

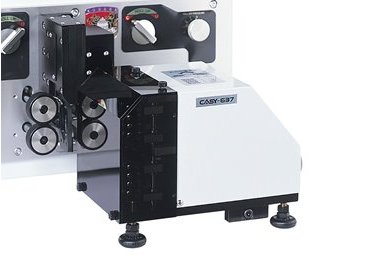

CASY-637A Wire Twist Machine
C370A with CASY-637A can twist wire by easy setting about twisting condition, direction, on control panel of C370A. and it cut the tip of the wire after twisting by using the function of Cut-Mode, so it can preven the tip of the twisting wire jumps out.
Movie
Processing Capacity
※Processing condition: Front/Rear strip length 3mm, Speed 9, wire UL1007/AWG#22, thin wire mode
| Total Length | Processing Capacity | |||
| 50mm | 10,500 pcs/hour | |||
| 100mm | 10,300 pcs/hour | |||
| 200mm | 9,100 pcs/hour | |||
| 300mm | 8,700 pcs/hour | |||
| 500mm | 7,600 pcs/hour | |||
| 1,000mm | 5,800 pcs/hour | |||
Specifications
Front/Rear : 0.1 ～ 30mm
0.1 ～ 99,999mm
±( 0.1 ＋ 0.0005 × L )mm
L ≧ 30mmminimum length
AWG #10(5.5sq) ～ #32(0.03sq) ※Depend on the wire type.
max φ6mm ※Depend on the wire type.
AVSS, VSF, IV, KV, UL, Teflon, etc
AC100 ～ 240V 50/60Hz
CASY-637A Wire Twisting machine
430 x 450 x 270mm
26kg
