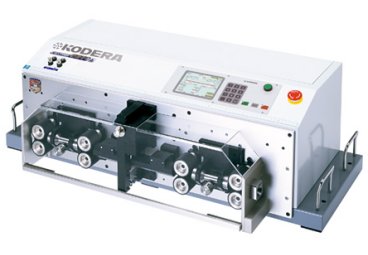

C377A Wire processing machine

Dual roller feed

C377A is equipped the Dual feeding roller, so it can process big cable cut and cable stripping like a battery cable easily with high power.

Processing Capacity

※Processing condition: Front/Rear strip length 10mm, Speed 9, core diameter 10mm

Total LengthProcessing Capacity
300mm614 pcs/hour
500mm578 pcs/hour
1,000mm501 pcs/hour
2,000mm397 pcs/hour
3,000mm329 pcs/hour



Specifications

Front : 0.1mm ～300mm / Rear : 0.1 ～ 150mm

160 ～ 99,999mm

±( 0.1 ＋ 0.0005 × L )mm

L ≧ 160mm

minimum length

80sq ～ 1.25sq (AWG#16)   ※Depend on the wire type.

max φ20mm   ※Depend on the wire type.

Battery cable, WL1, WL2, Cabtire cable, IV, KV, etc

AC100 ～ 240V    50/60Hz

none

1,026 x 520 x 325mm

86kg

5Nl/min   0.5MPa
