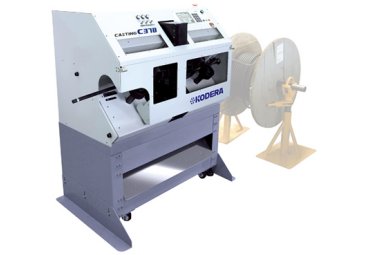

C378 Battery cable processing machine
Surprise power
C378 is the most powerful machine in the Casting series. It can process cutting and stripping high voltage power cable up to 200sq and Cabtire cable up to 35φ.
Processing Capacity
※Processing condition: Front/Rear strip length 20mm, Speed 9, wire WL1 38sq
| Total Length | Processing Capacity | |||
| 1,000mm | 257 pcs/hour | |||
| 2,000mm | 212 pcs/hour | |||
Specifications
Front : 0.1mm ～160mm / Rear : 0.1 ～ 200mm
180 ～ 99,999mm
±( 0.1 ＋ 0.0005 × L )mm
L ≧ 180mm
200sq ～ 30sq (AWG#2) ※Depend on the wire type.
max φ35mm ※Depend on the wire type.
ABattery cable, WL1, WL2, Cabtire cable, IV, KV, etc
AC100 ～ 240V 50/60Hz
none
1,005 x 670 x 1,360mm
590kg
5Nl/min 0.5MPa
