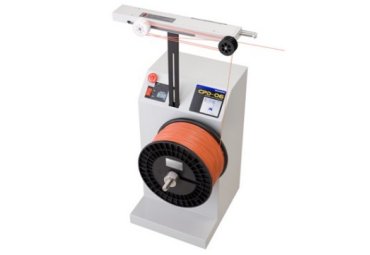

CPD-06 Automatic bobbin wire feeding machine
High performance wire feeder
CPD-06 has integrated micro computer, that computes the balance of diameter of bobbin wire and gets information about wire cutting length from wire processing machine of KODERA, and then it regulates the appropriate wire feeding speed.
Movie
Specifications
AWG#18 ～ #40 ※Depend on the wire type.
max 20kg
max 200mm
max φ600mm
φ20 ～ 40mm
max φ6mm ※Depend on the wire type.
Stepping motor
AC200 ～ 240V 50/60Hz
rated : 12W / max : 70W
450 x 545 x 1,005mm
35kg
