KM-3100 Tube cutting machine
User-friendly
KM-3100 tube cutter is design of control panel is very simple, so operators can use very easy.
Reel-stand
KM-3100 is including the reel stand without electric for shrink tube, etc that is less than the radius of 250mm.
COP-314 Static-remover
KM3100 can attach optional Static-remover COP-314. when it is affected by the static, KM3100 with COP-314 is very effective.

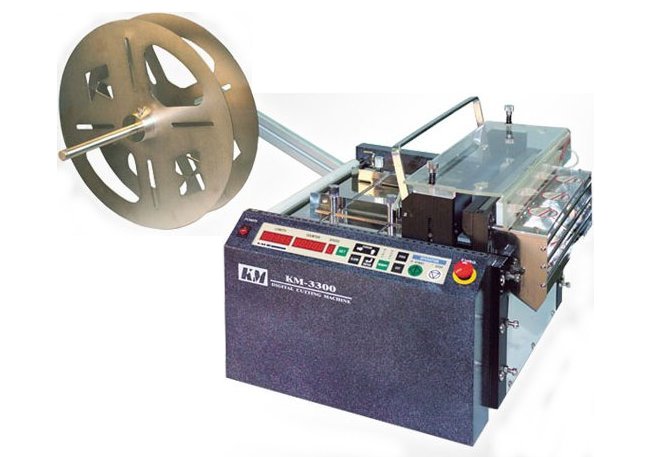

KM-3200/KM-3300/KM-3400
Wide type series
Material range over 100mm to 400mm wide can be cut by KM-3200,KM-3300,KM-3400. It can cut a lot of kinds of material except the tubes too, for example,insulation paper for motor, something plate, film etc.
Movie
Specifications -- KM-3100
100mm
Shrink tube, Silicon tube, PVC tube, Hose, Rubber, Tin/Copper plate,
Wire, Braided wire, Paper, Film, etc.
0.1 ～ 9,999.9mm
1 ～ 99,999pcs
AC110V or 220V 50/60Hz
COP-314 Static-Remover
395 x 265 x 355mm
21kg
Specifications -- KM-3200
200mm
Shrink tube, Silicon tube, PVC tube, Hose, Rubber, Tin/Copper plate,
Wire, Braided wire, Paper, Film, etc.
0.1 ～ 9,999.9mm
1 ～ 99,999pcs
AC110V or 220V 50/60Hz
COP-314 Static-Remover
395 x 365 x 355mm
25kg
Specifications -- KM-3300
300mm
Shrink tube, Silicon tube, PVC tube, Hose, Rubber, Tin/Copper plate,
Wire, Braided wire, Paper, Film, etc.
0.1 ～ 9,999.9mm
1 ～ 99,999pcs
AC110V or 220V 50/60Hz
COP-314 Static-Remover
410 x 500 x 345mm
43kg
Specifications -- KM-3400
400mm
Shrink tube, Silicon tube, PVC tube, Hose, Rubber, Tin/Copper plate,
Wire, Braided wire, Paper, Film, etc.
0.1 ～ 9,999.9mm
1 ～ 99,999pcs
AC110V or 220V 50/60Hz
COP-314 Static-Remover
410 x 600 x 345mm
47kg
